Spray painting robot industrial robotic arm
- Description
Spray painting robot industrial robotic arm
Product Description
Technical Parameters
|
Payload
|
6 kg
|
|
|
Reach
|
1950 mm
|
|
|
Structure
|
Articulated
|
|
|
Number of axes
|
6
|
|
|
Repeatability
|
±0.05 mm
|
|
|
Max. motion range
|
Axis 1
|
±165°
|
|
Axis 2
|
+135°/-75°
|
|
|
Axis 3
|
+78°/-76.5°
|
|
|
Axis 4
|
±360°
|
|
|
Axis 5
|
±115°
|
|
|
Axis 6
|
±450°
|
|
|
Max. speed
|
Axis 1
|
148°/sec
|
|
Axis 2
|
148°/sec
|
|
|
Axis 3
|
150°/sec
|
|
|
Axis 4
|
222°/sec
|
|
|
Axis 5
|
222°/sec
|
|
|
Axis 6
|
360°/sec
|
|
|
Body Weight
|
≈125 kg
|
|
|
Mounting type
|
Ground, bracket, ceiling
|
|
|
Applicable industries
|
Handling, loading &unloading, palletizing, painting
|
|
|
Ambient temperature
|
-20 ℃~80 °C
|
|
Workspace
Main Applications
Painting
Applicable Cases
Hanging line tracking and painting GS1500-B-6 is the painting robot with a payload of 6 kg and a reach of 1500 mm, it is generally integrated with various non-standard turntables or hanging equipment to form work stations. The figure shows the hanging line tracking and painting solution provided for a customer. It not only significantly reduces labor cost but also improves the yield.
Detailed Images
Harmonic reducer
Control the servo motor by three methods: position, speed and torque
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability
Servo Motor Driver
Control the servo motor by three methods: position, speed and torque
Controller board
Including various interfaces such as IO module, safety module, A / V analog module

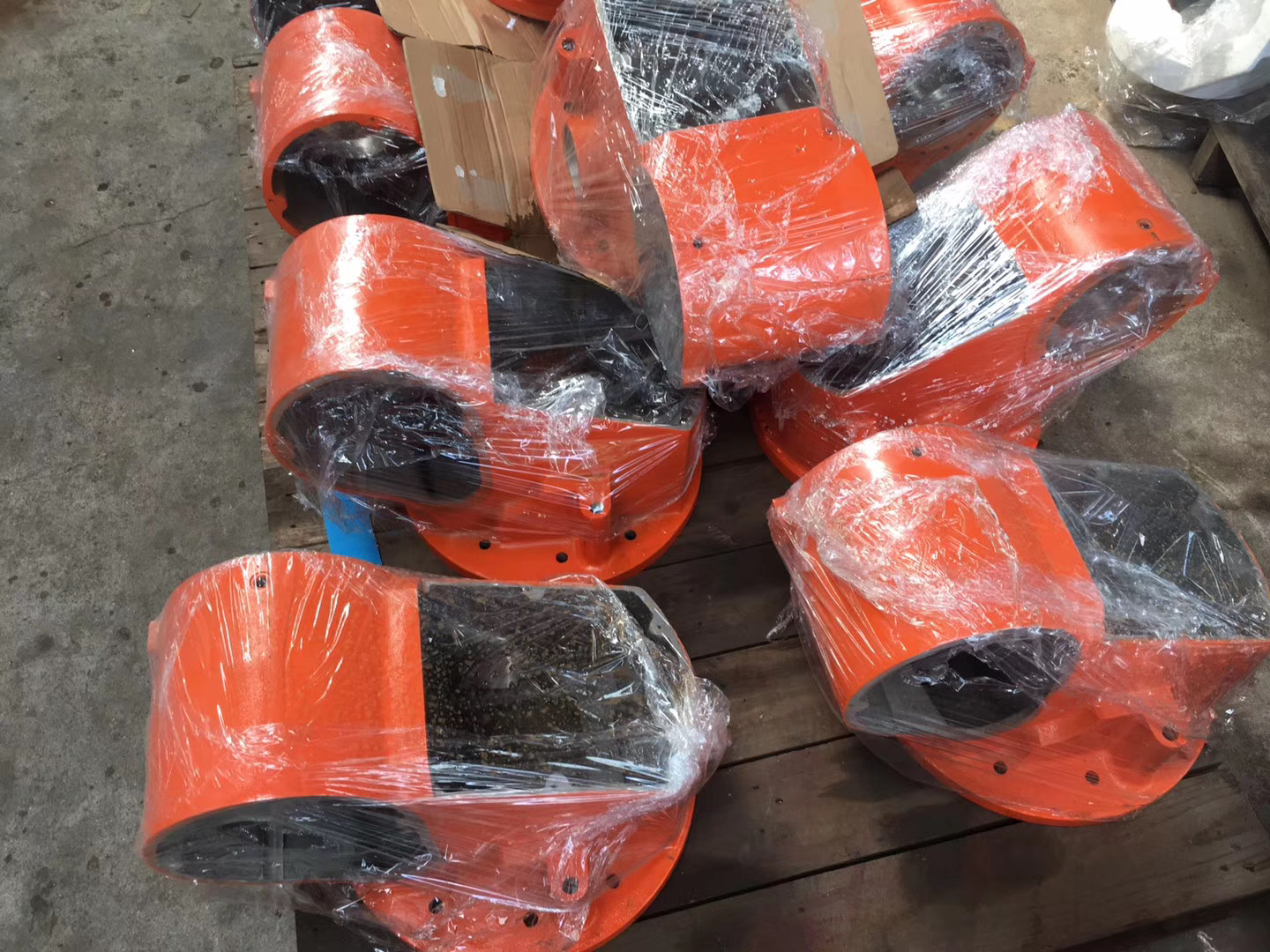

Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting

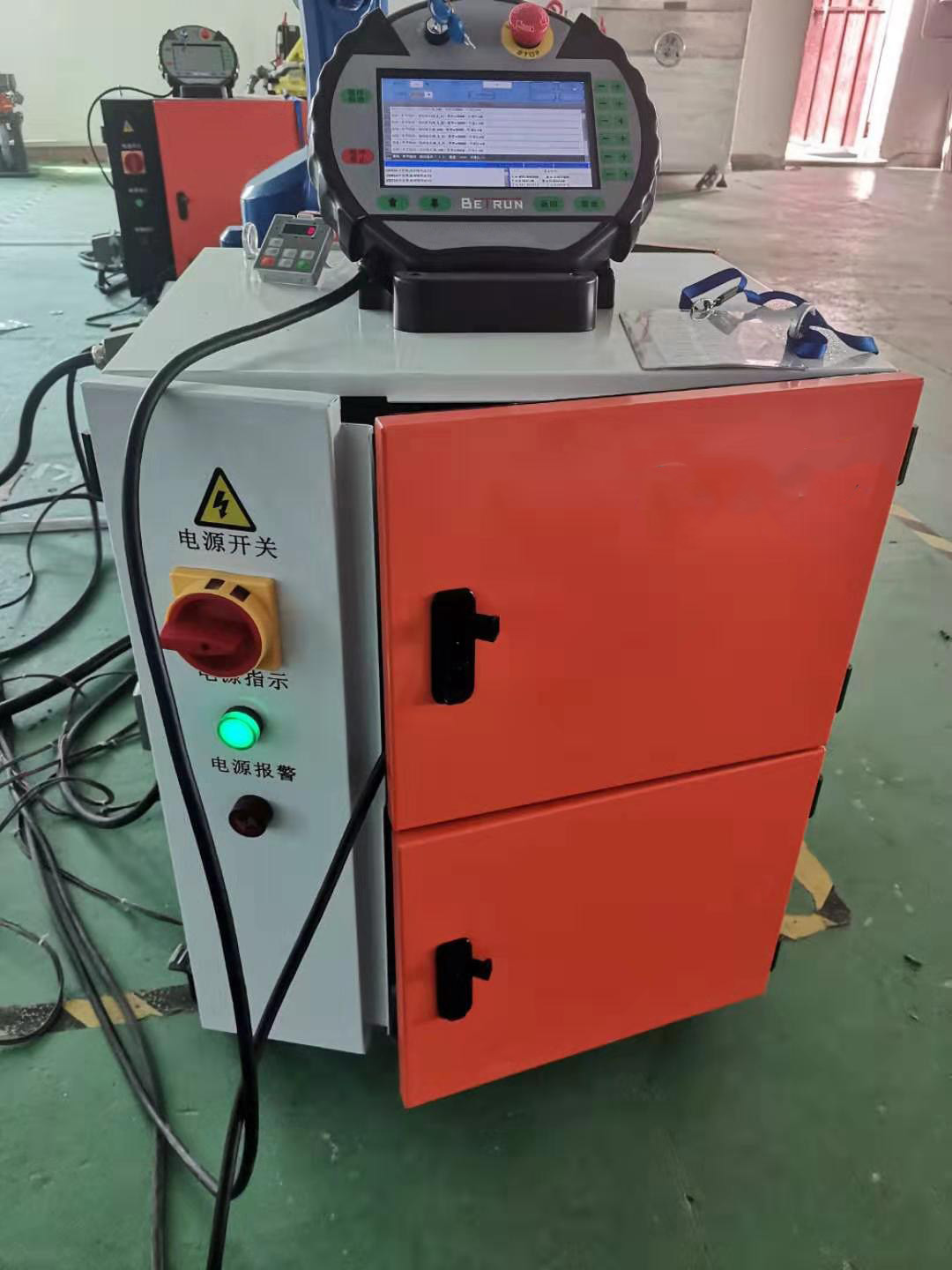

Robot Control System
Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
